Breakout Board – 5 Axis

69.00 NZD incl GST

Out of stock

SKU: TNZ00432 Categories: ,

Description

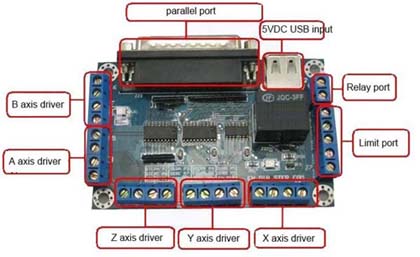

  • Supports up to 5 stepper motor drivers with ENABLE, STEP and DIRECTION
  • Has 4 limit switch inputs
  • Has relay for machine spindle control
  • Working voltage is 5VDC (supplied bu USB connection)
  • Will work with MACH3,EMC2,KCAM4 software
  • Uses computer parallel port (cable not included)
  • Size:9×5.7cm
DB25 (PIN) Pin Function Comment
1 STEPB B(Fifth axis)pulse signal
2 STEPX X(First axis) pulse signal
3 DIRX X(First axis) direction
4 STEPY Y(Secondaxis)pulse signal
5 DIRY Y(Second axis)direction
6 STEPZ Z(Third axis) pulse signal
7 DIRZ Z(Third axis) direction
8 STEPA A(Fourth axis) pulse signal
9 DIRA A(Fourth axis) direction
10 LIMIT-1 Limit input interface 1
11 LIMIT-2 Limit input interface 2
12 LIMIT-3 Limit input interface 3
13 LIMIT-4 Limit input interface 4
14 DIRB B(Fifth axis) direction
15 Vacant
16 RLY Relay control
17 EN All axis enable
18-25 GND GND

Additional information

Weight 0.080 kg
Dimensions 110 × 80 × 80 mm
