Description
Relative/absolute measurement interchange at any position
Power-off automatically in 5 minutes.
Portable size, convenient to co-work with other measuring tools
Magnetic base
Technical Parameters
- Measuring range: 0-90°, in any orientation
- Resolution: 0.05°
- Accuracy: ±0.2°
- Repeatability: 0.1°
- Battery: 9V battery
- Working temperature: 0°C-40°C
- Absolute zero measurement based on the horizontal surface

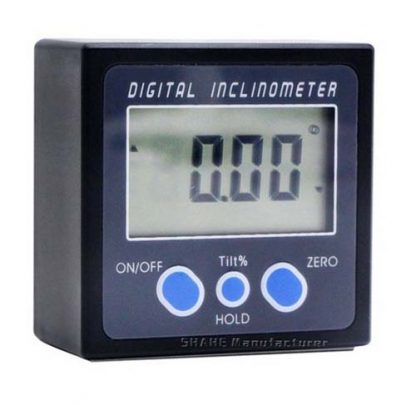

Operating Instructions:
- Press the “ON/OFF” button to turn the unti on. The LCD displays absolute horizontal angle. Press “ON/OFF” button again, it turn off.
- Measurement initially displays 0.0°on the LCD. When it displays“”on the left side “”on the right side, it means the left side is higher and right side lower; when it displays“” on the left side “”on the right side, it means the left side is lower and right side higher.
- Put the instrument on the horizontal (level) surface, and press the “ZERO” button, the value returns to zero, and the read-out is the angle value measured angle value relative to the horizontal surface.
- Press the “HOLD” button, the value on the screen will be locked.

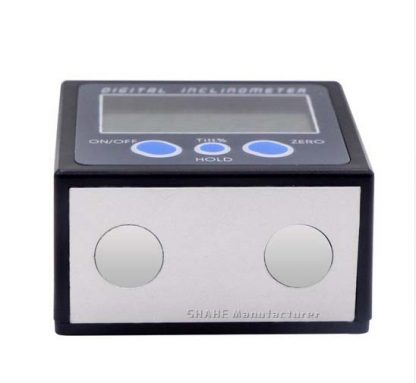

- The magnets at the bottom allow the instrument to be attached to magnetic material.
- Press the “ZERO” button to reset the value to measure relative change in angle.
