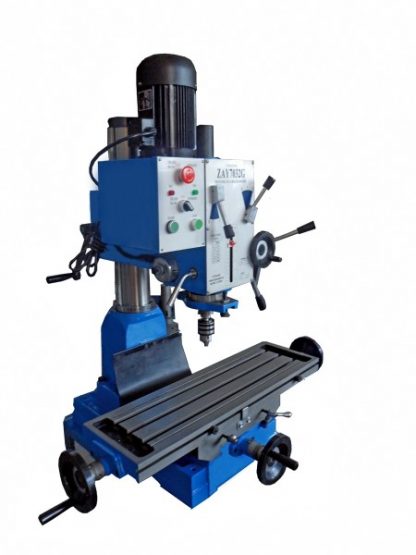

Mill – ZAY7045G

2,600.00 NZD incl GST

Out of stock

SKU: TNZ00773 Category:

Description



  • Model ZAY7045G
  • Drilling capacity 45mm
  • Face milling capacity 80mm
  • End milling capacity 32mm
  • Distance from spindle nose to table 440mm
  • Min. distance from spindle axis to column 272.5mm
  • Spindle travel 130mm
  • Spindle taper MT4
  • Spindle speeds 6
  • Range of spindle speeds @ 50Hz 80-1250 r.p.m
  • Swivel angle of headstock(horizontally/perpendicularly) 360° /± 90°
  • Table size 800× 240mm
  • Forward and backward travel of table 175mm
  • Left and right travel of table 500mm
  • Motor power 1.5KW(2HP)
  • Voltage/frequency 230V/50Hz
  • Net weight/gross weight 320kg/370kg
  • Packing size 770× 880× 1160mm

Download product Manual for ZAY7045G Manual [PDF Doc ~ 1 MB]

Additional information

Weight 370.000 kg
Dimensions 880 × 770 × 1160 mm
